High Rib Galvanized Metal Lath Sheet 16mm Height 150mm Spacing for Concrete Floor Slab Applications

500 Pieces
MOQ
High Rib Galvanized Metal Lath Sheet 16mm Height 150mm Spacing for Concrete Floor Slab Applications
Features Gallery Product Description Chat Now
Features
Specifications
Rib Height: 16mm
Rib Spacing: 150mm
Sheet Size: 27 Inch X 96 Inch (686mm X 2438mm)
Material: Galvanized Steel
Standard Thickness: 0.5mm
Tensile Strength: 350 MPa
Highlight:

galvanized metal lath sheet

,

high rib lath for concrete

,

16mm height metal lath
Basic Infomation
Place of Origin: Hebei, China
Brand Name: WSFIVIN
Certification: ICC-ES, ISO 9001
Model Number: HRL-16
Payment & Shipping Terms
Packaging Details: Pallet packing with steel strapping, export-grade waterproof wrapping
Delivery Time: 15-20 working days
Payment Terms: T/T,L/C,Western Union
Supply Ability: 10000 Pieces per Month
Product Description

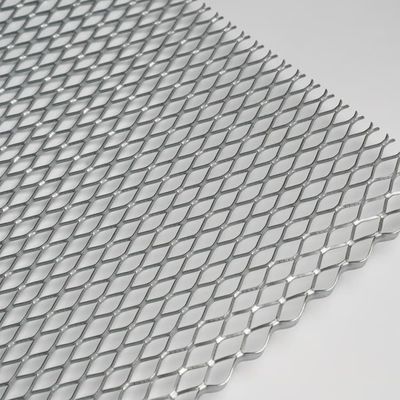

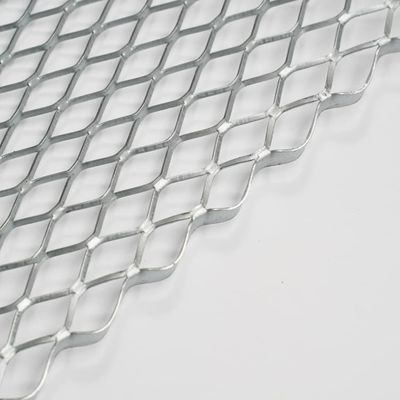

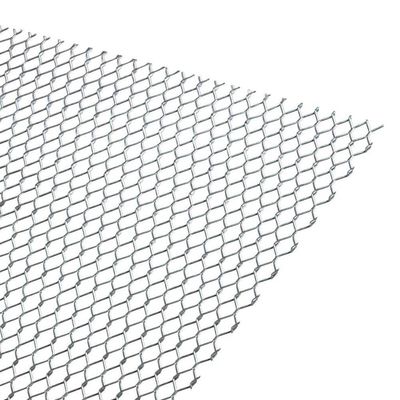

High Rib Metal Lath Sheet for Concrete Floor Slab and Stucco Applications
High Rib Galvanized Metal Lath Sheet is a heavy-duty reinforcement material designed for concrete floor slab systems, stucco ceiling, and structural plastering applications. The deep 16mm V-shaped rib profile provides superior stiffness and load-bearing capacity compared to standard flat metal lath, making it ideal for applications that require extra structural support and reliable plaster keying.
Manufactured from galvanized steel with 350 MPa tensile strength, this high rib lath sheet offers excellent corrosion resistance for both interior and exterior use. The 150mm rib spacing ensures consistent plaster adhesion across the entire sheet surface, while the ribbed design creates a mechanical bond that locks plaster and concrete firmly in place.
Suitable for contractors, building material distributors, and project buyers who need dependable high rib lath for concrete slab forming, suspended ceiling installation, and structural wall reinforcement. Custom rib heights, sheet sizes, and packing methods are available upon request.
Product Specifications
Model Rib Height Rib Spacing Sheet Size Thickness Weight/Sq.Yd. Pcs/Bundle
HRL-16 16mm 150mm 27" x 96" 0.5mm 3.4 lbs 10
HRL-20 20mm 150mm 27" x 96" 0.5mm 3.8 lbs 10
HRL-25 25mm 200mm 27" x 96" 0.6mm 4.2 lbs 10
Key Advantages
The V-shaped rib profile significantly increases sheet stiffness, reducing deflection during concrete pouring and plastering. This design minimizes the need for additional support framing and speeds up installation. The galvanized surface treatment provides long-term rust protection, making the lath suitable for humid and outdoor environments. Compared with flat expanded metal lath, high rib lath delivers stronger mechanical keying and higher pull-out resistance for stucco and plaster layers.
Applications
Concrete floor slab forming, suspended ceiling systems, stucco wall reinforcement, tunnel lining, arched ceiling construction, and structural plaster base for commercial and residential buildings.

High Rib Galvanized Metal Lath Sheet 16mm Height 150mm Spacing for Concrete Floor Slab Applications

High Rib Galvanized Metal Lath Sheet 16mm Height 150mm Spacing for Concrete Floor Slab Applications

High Rib Galvanized Metal Lath Sheet 16mm Height 150mm Spacing for Concrete Floor Slab Applications
